Details
Rugby truck hoists are built to perform in the toughest application and factory tested for ruggedness and endurance. We offer a complete line-up of truck and trailer hoists.
Rugby has a full line-up of underbody hoists including low-mount scissor hoists (LR Series) and subframe scissor hoists (SR Series) with lifting capacities ranging from 2.6 to 35.7 tons and fit bodies from 8’ – 16’ long.

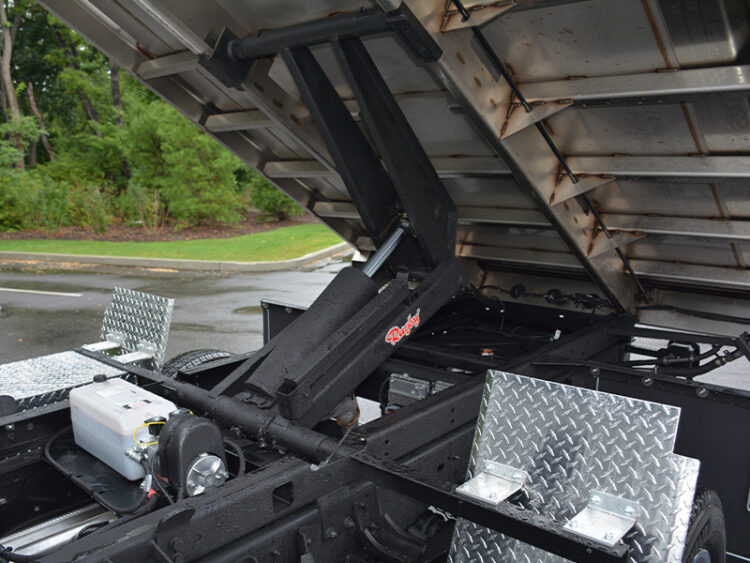

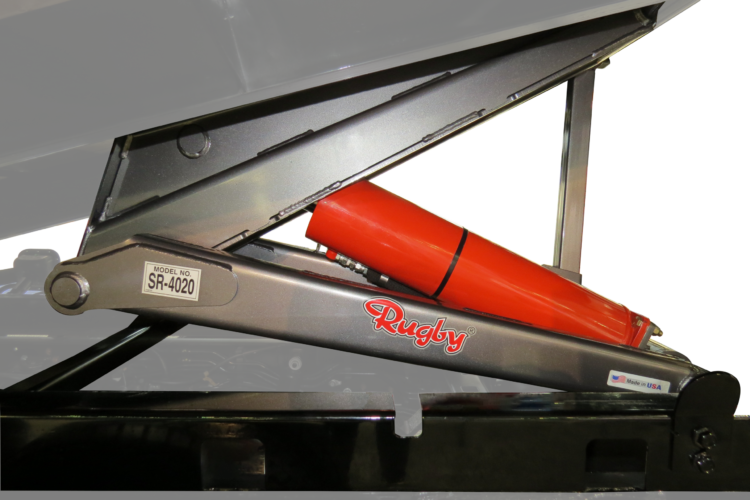

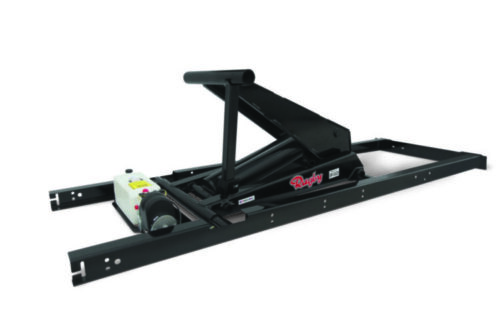

Rugby’s SR series line of subframe scissor hoists are designed to reduce installation time and make hoist application easier. Built with an incorporated body prop and table top rear hinge, the SR series is estimated to reduce installation time by at least 10-15%. Subframes are available to accommodate 60″ CA and 84″ CA chassis.
Hoist includes subframe
Fuel inlets cut into subframe for all domestic chassis
Subframe has shock absorber cut outs for the new Dodge chassis
Body prop incorporated on the hoist
Operating Pressure is 3200 PSI
Powder coated black
