Details
The Norstar SD Service bed is perfect for the tradesman. This Service Bed offers multiple standard tool boxes and many options for your on-the-go needs.

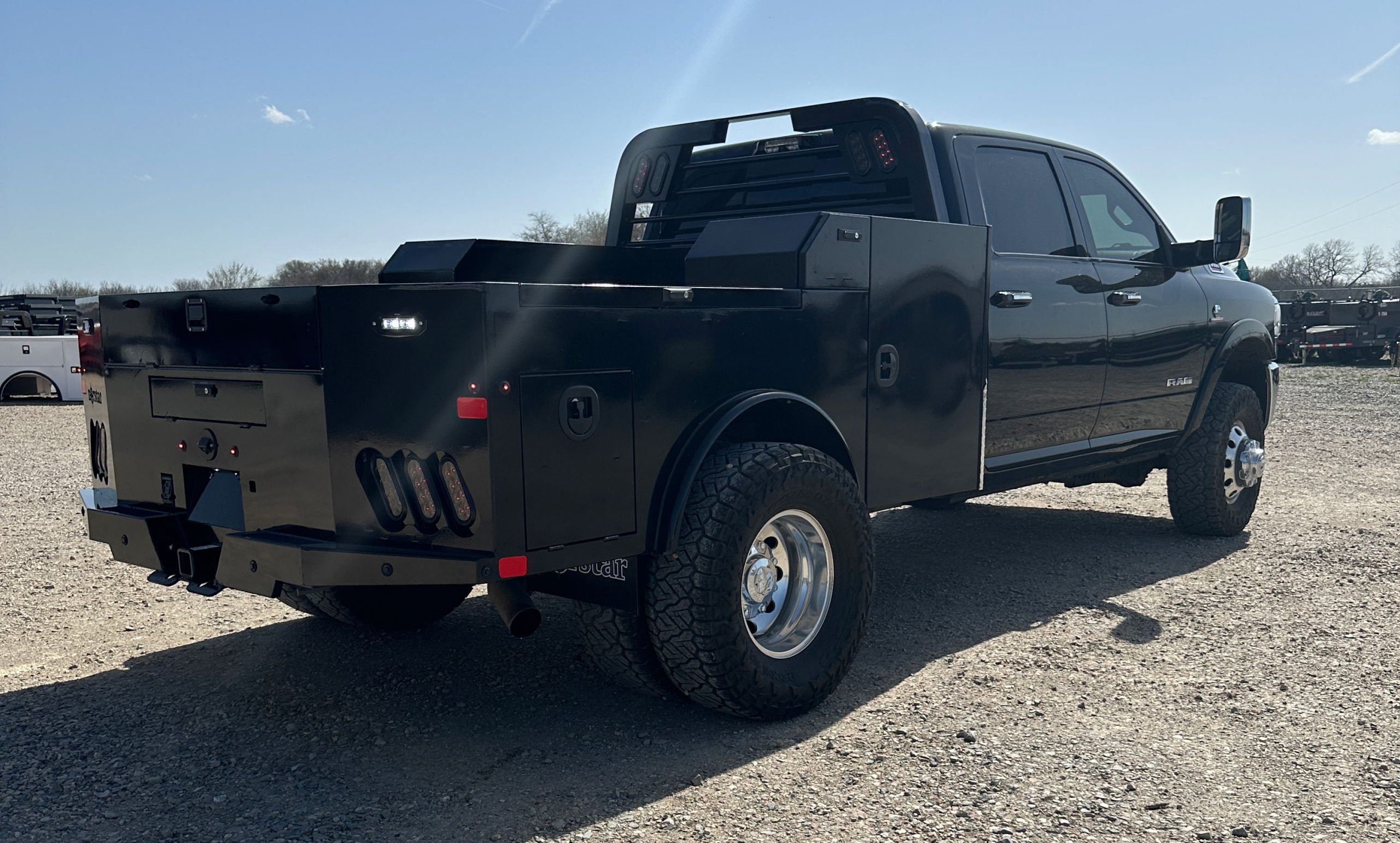

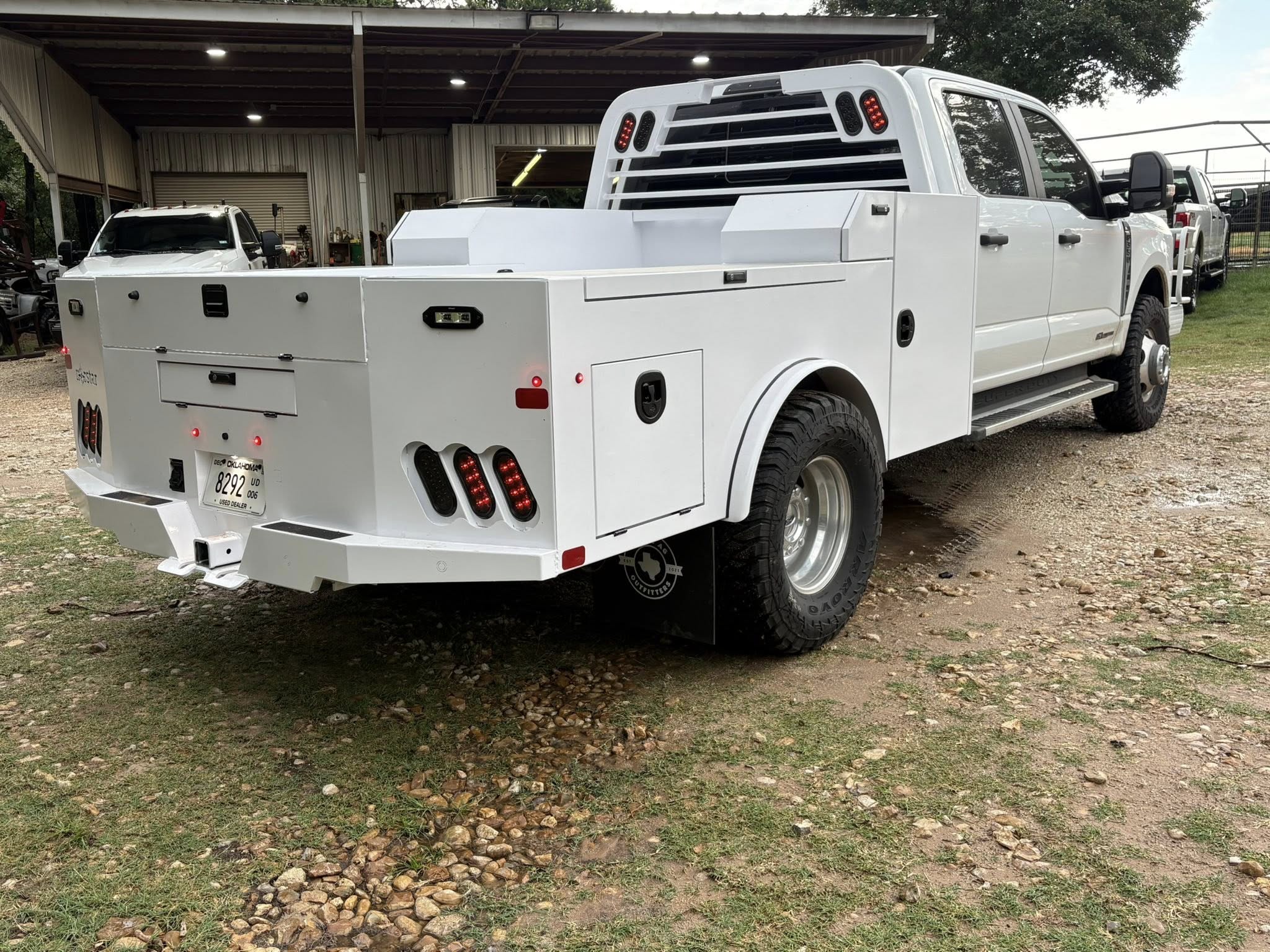

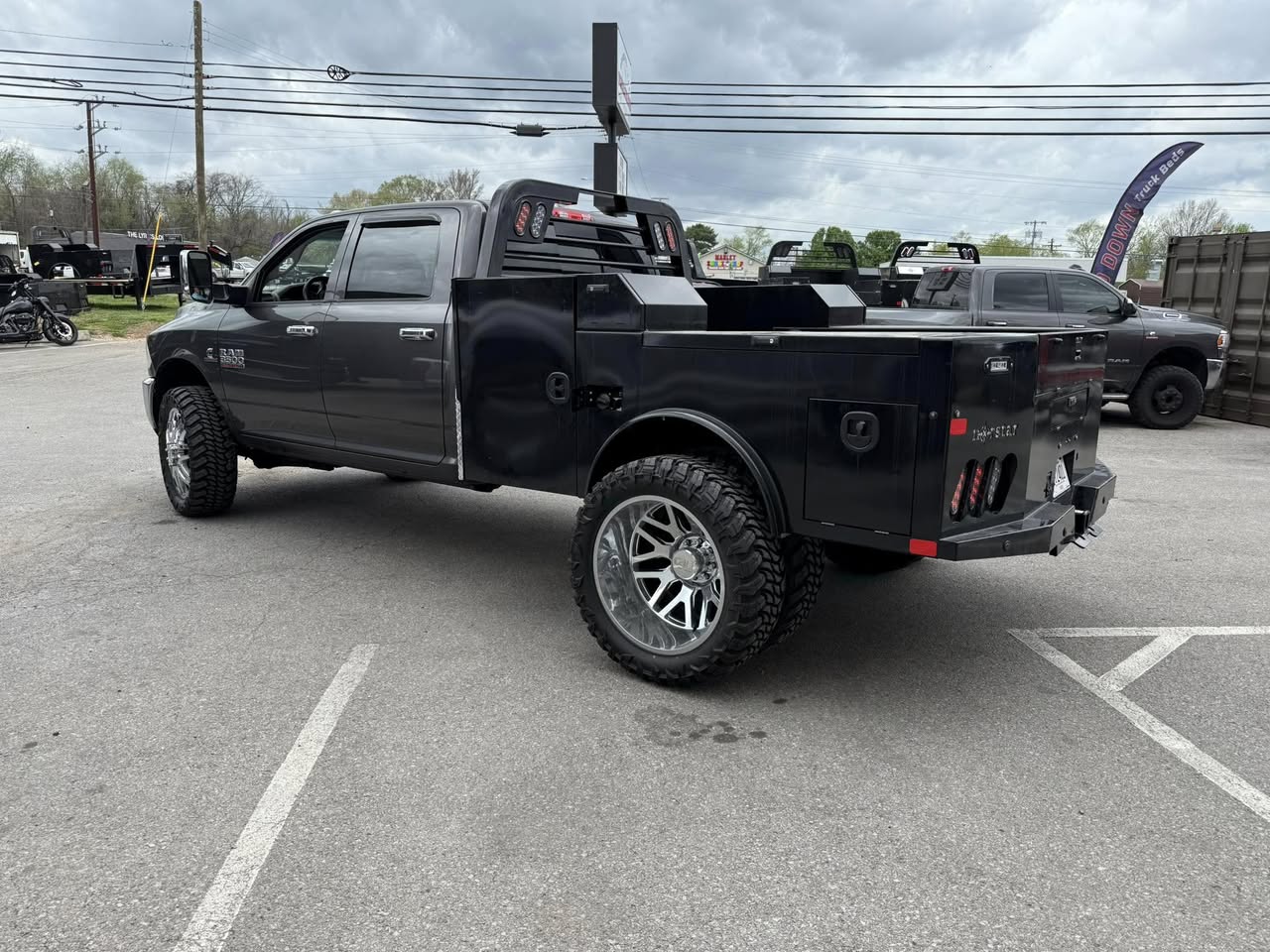

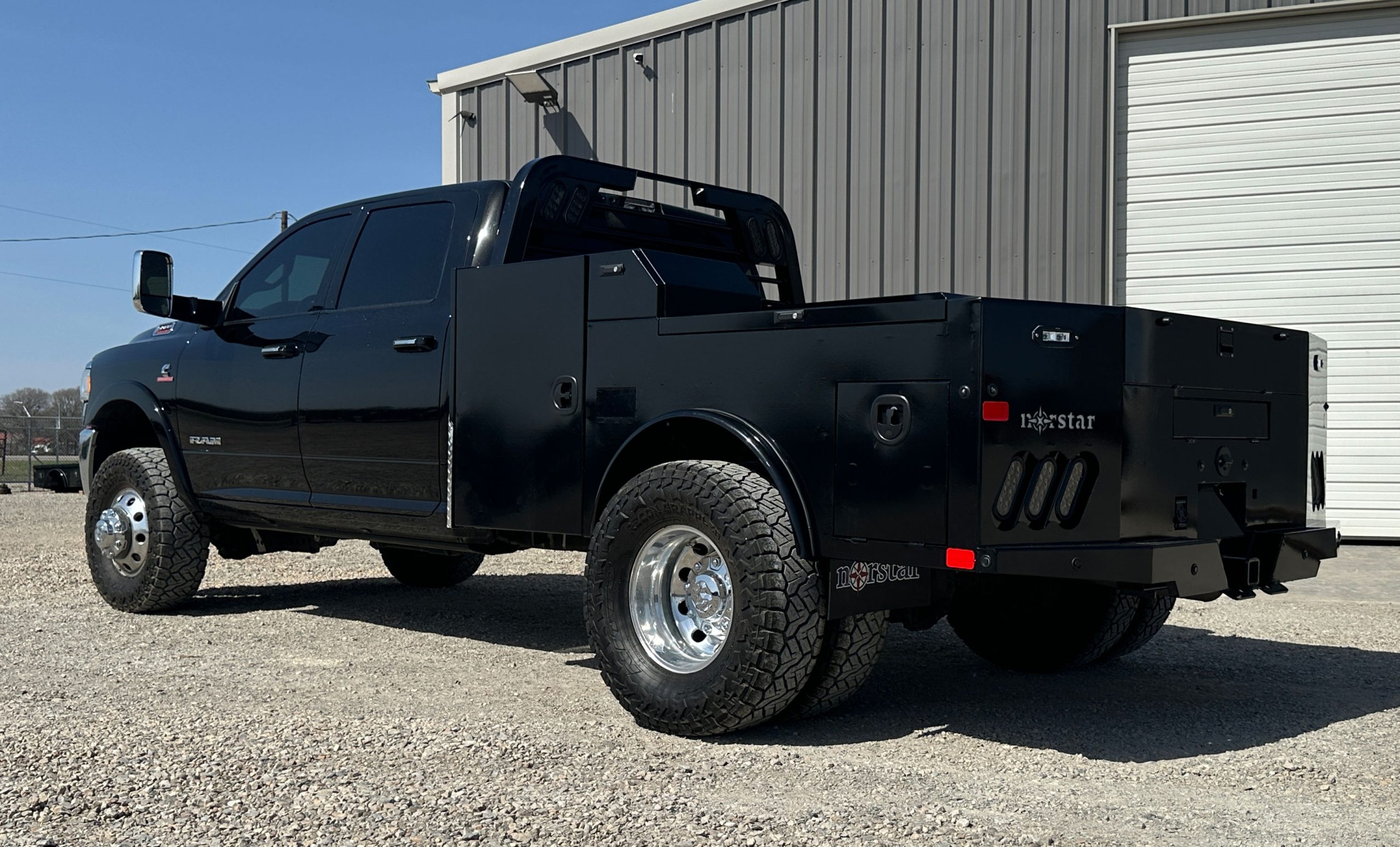

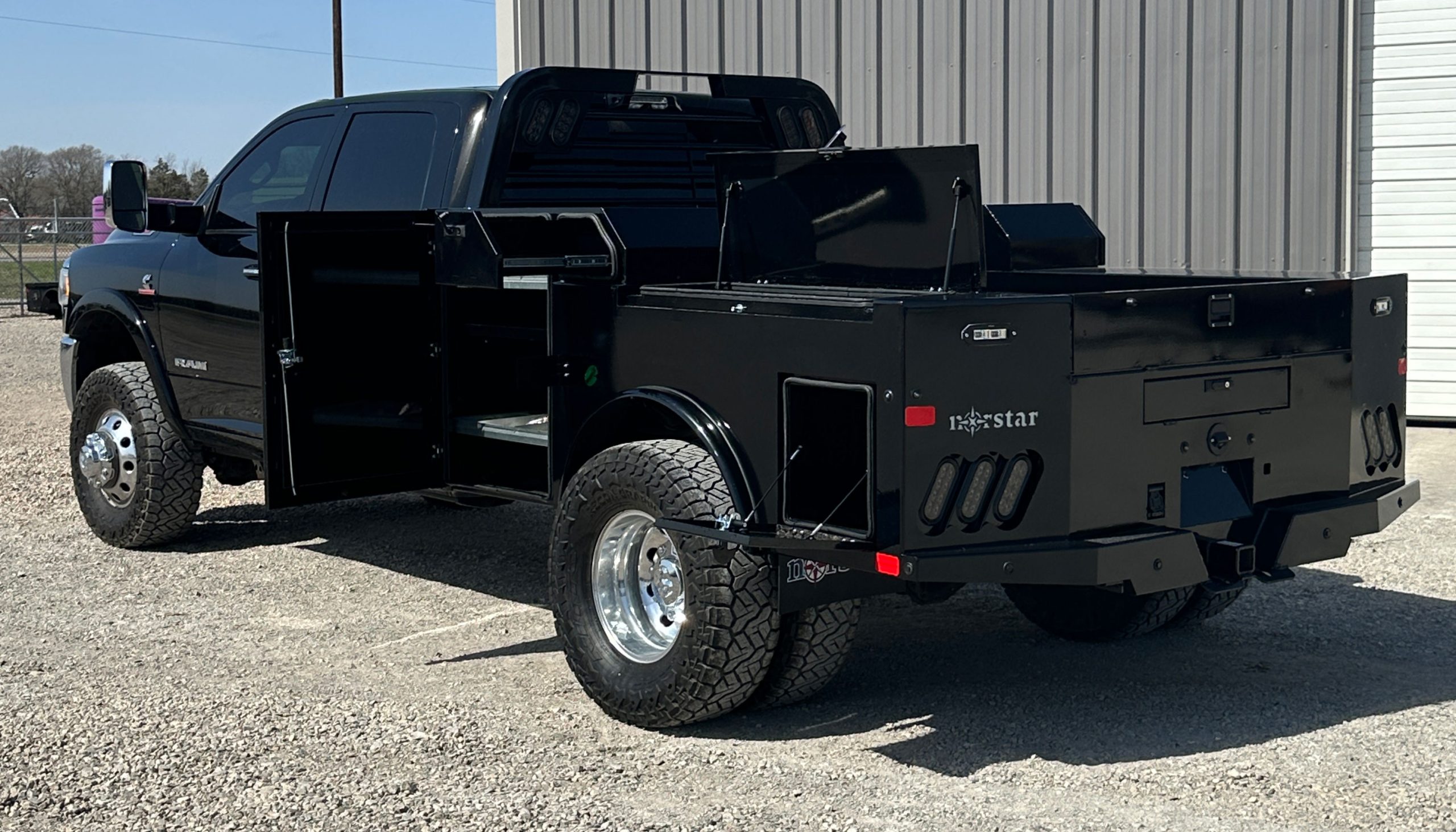

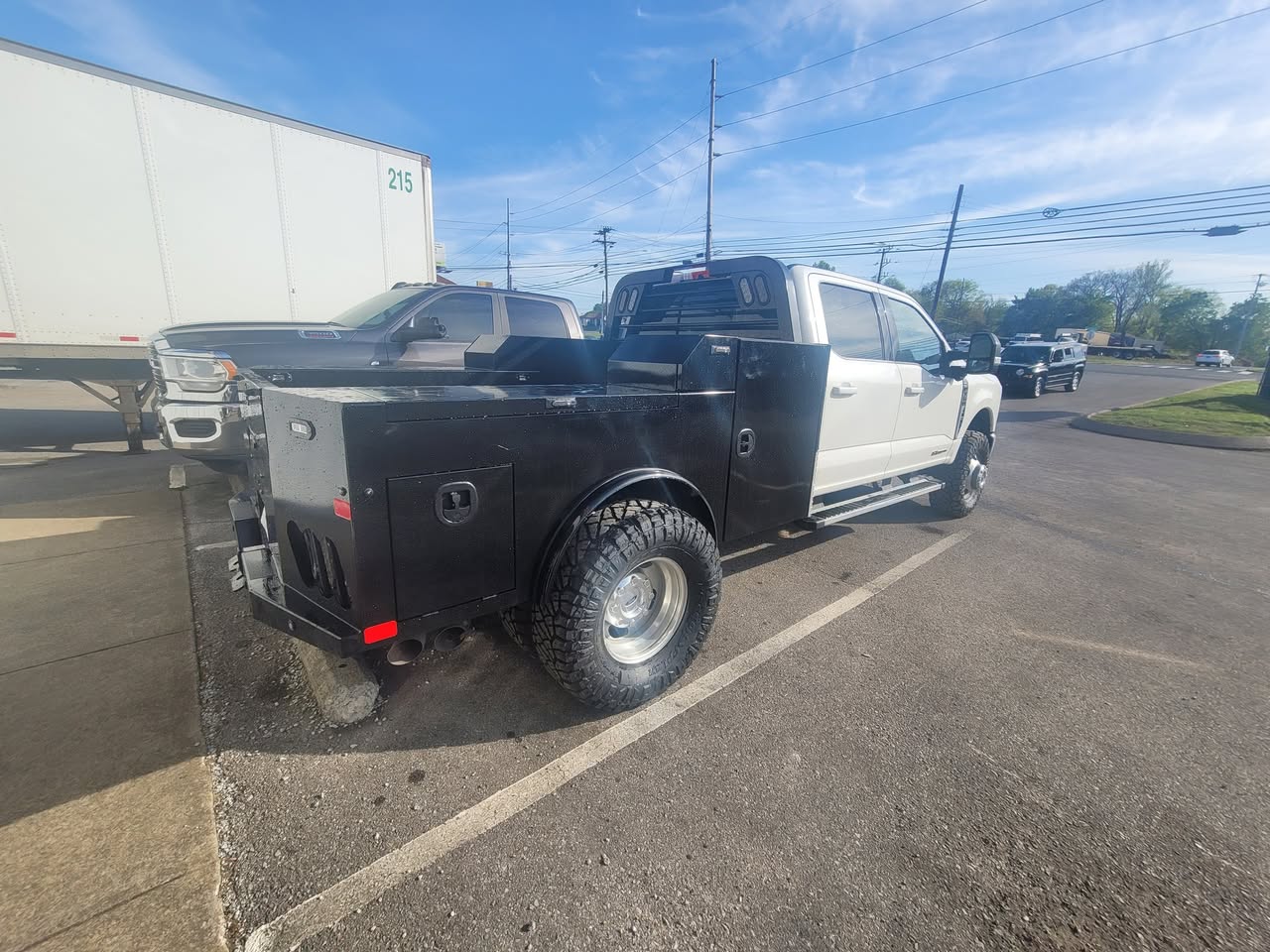

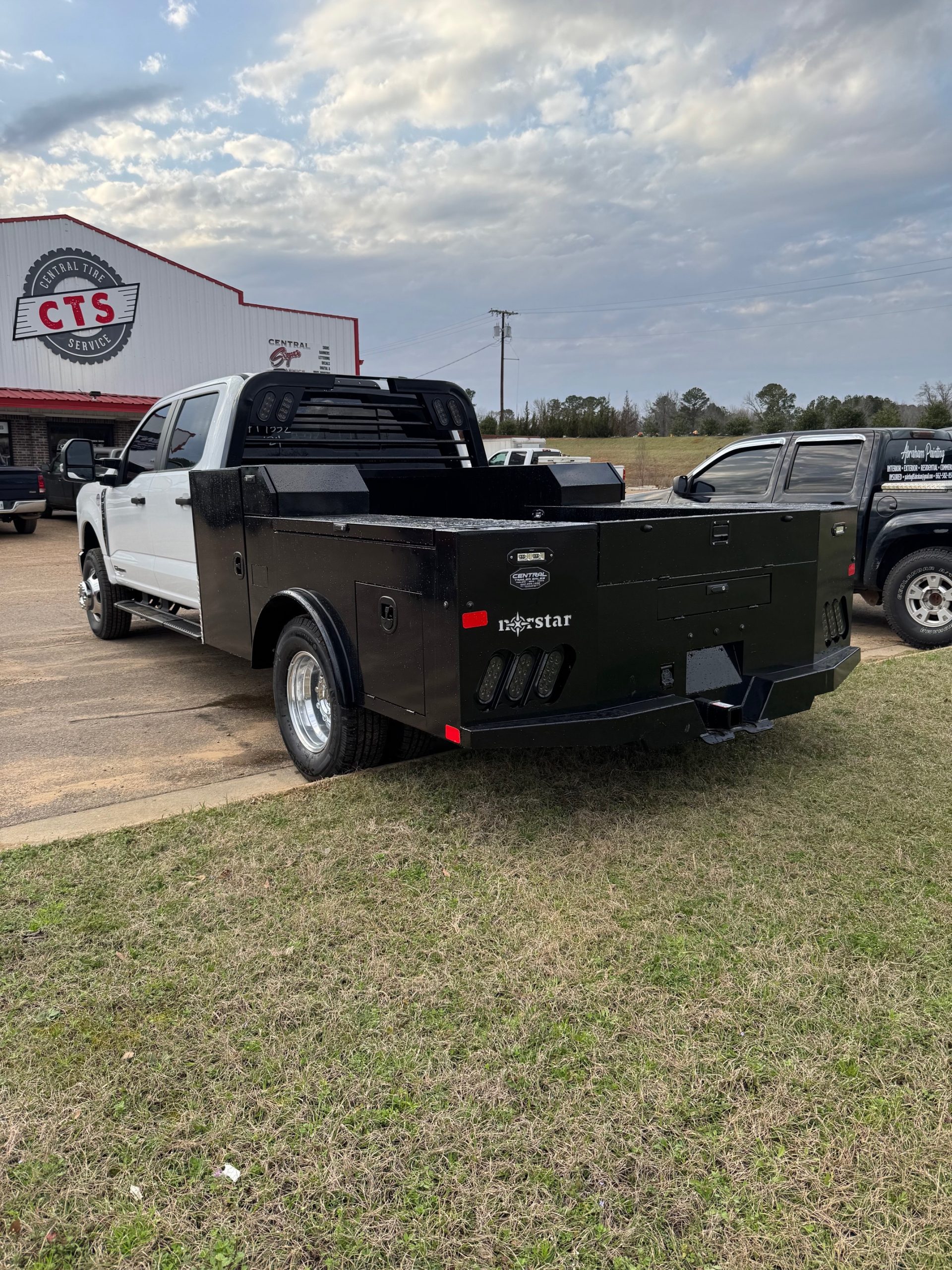

The Norstar SD Service Bed is a best seller model for good reason. This bed is designed for maximum storage and functionality, featuring two vertical cabinets, two angled pull-out trays, two flush-mount top lids, and two rear underbody boxes—plus a bonus locking rear compartment for added storage.
With multiple configuration options, you can customize this truck bed to fit your industry’s needs. All doors are equipped with a three-point latch system and compression whale tail latches, along with a tamper-resistant, serviceable integrated bolt-on door system for enhanced security.
For towing, the 2.5″ receiver supports a bumper pull hitch, while a B&W turnover ball gooseneck hitch comes standard for handling heavy loads. Our receivers are lab-tested and certified for 18,500 lbs bumper capacity and 30,000 lbs gooseneck capacity.
Additional features include adjustable galvanized tool trays with optional cabinet tool drawers for organized storage of tools and parts. The bed also comes standard with dual LED rear work lights producing 3,600 lumens, a tailgate, and a gloss black powder-coated finish for durability. Built with smooth 12-gauge sides and an 11-gauge bumper, this bed is the perfect fit for any single or dual-wheel work truck.
NEW* FLUSH MOUNT TOP LID
NEW* WHALE TAIL COMPRESSION LATCHES
NEW* 3 POINT LATCH ON FRONT TOOLBOX

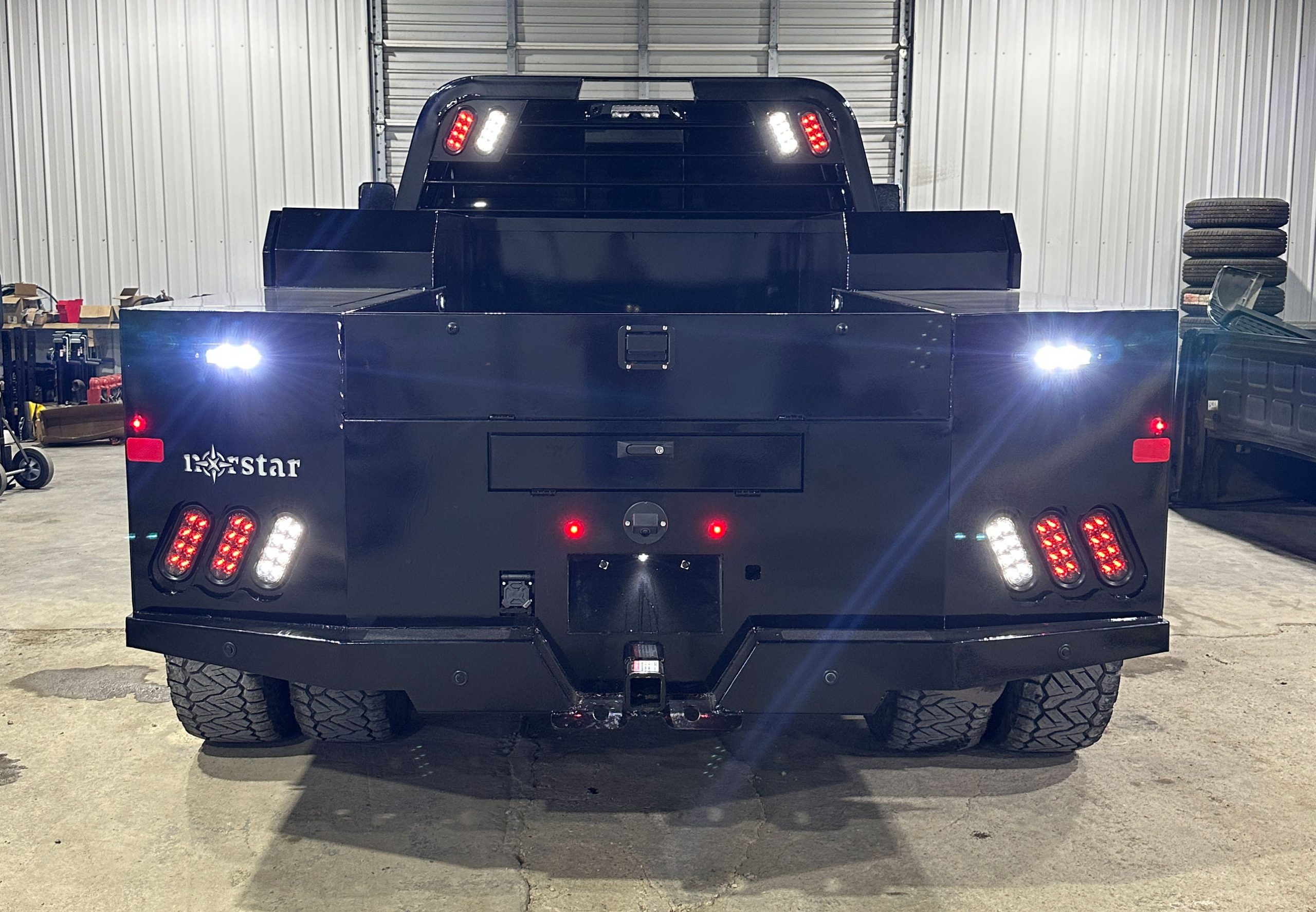

NEW* FLUSH MOUNT REAR WORK LIGHTS, 3600 LUMENS
NEW* BOLT ON HINGES
NEW* SMOKED LIGHTS THROUGHOUT
NEW* CARGO LIGHTS ON THE DECK/INNER CABINET
NEW* SENSOR KNOCKOUTS
NEW* SPARE TIRE KNOCKOUT
NEW* STANDARDIZED B&W TURN OVER BALL GN HITCH
NEW* ANGLE BOX PULL OUT TRAY
NEW* NOTCHED HEAD RACK
NEW* FUEL FILLER DOOR
Steel Structural Frame
2.5″ 18.5k Rated Bumper Receiver
30k Rated 2 5/16″ Gooseneck Ball
4″ Runner Channels (Adjustable on 56″ CTA Only)
Formed 3 x 3/16″ Channel Cross Members
Steel Tube Head Rack w/ Cross Bars
Steel 1/8″ Diamond Plate Floor
Fold-Down Tail Gate w/ Latch
Built in Gooseneck Well With Ball Mounted & Diam Plate Lid
Angled Fuel Filler Neck & DEF Ready
Skirted Rear Bumper w/ Anti Slip Step
Receiver Hitch Ready
4 Tool Boxes w/ Locking Chrome Paddle Latches (6 on 11’4″)
Rear Lockable Compartment 27″ x 38″ – 78″
12Ga Steel Construction w/ 11Ga Bumper
7 Way Plug in Gooseneck Box
LED Headache Rack Work Light
Adjustable Black Smooth Fender Flares
Primer & Powder Coated Black
3/4″ LED Marker Lights
4 Clear 6″ Oval LED Reverse Lights
6 Red 6″ Oval LED ST/TL/TN Lights
Single LED License Plate Light
Side & Rear Reflectors
Dual LED Work Lights
Single LED Rear Head Rack Work Light w/ Switch
All Lighting DOT Approved
Molded Sealed Harness w/ Resistors
7 Way Receiver Female Plug w/ ADAPTER
7 Way Plug in Gooseneck Well
Adjustable Galvanized Shelves in Front Tool Boxes
